postflight: import your flight data

Steps to be taken:
1. Save your flight data
2. import your flight data for processing & continue the postprocessing

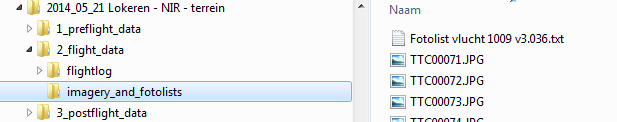

Having a look at the folder structure of your generated project, you can easily see where to put your 'flight' files after the flight. Put the images in the flight directory together with the EO file that you generated in the most recent version of your hardware manufacturer.



If you used the preflight tab to plan your flight (microdrones), delete the “flight1” folder and put the images directly in the “imagery_and_photolist folder. The photolist need to be changed to a EO file (Image name, X, Y, Z, Roll, Pitch, Yaw) (see below). Change your UAV type to generic and start the import (CRS = WGS 84 (4326), long/lat, order = roll pitch yaw; yaw = pointing North cw; z = above sealevel).

Photolist

Flight #1009 	2014-05-21 	08:08

Photo 	GPS Time 	Timecode 	Latitude 	Longitude 	GPS-A. 	Height 	Roll 	Pitch 	Yaw 	Pitch servo 	Roll servo
001 	08:11:39 	181.910 	+51.08674752 	+4.01096161 	113.9 	64.6 	+0.3 	-1.1 	+93.1 	+34.6 	+45.0
002 	08:11:53 	195.413 	+51.08674537 	+4.01107521 	114.3 	64.6 	+0.6 	+0.4 	+92.0 	+35.5 	+45.0
003 	08:12:06 	208.676 	+51.08674224 	+4.01117978 	113.9 	64.5 	+0.5 	-1.2 	+91.9 	+34.6 	+45.0
004 	08:12:20 	222.154 	+51.08674074 	+4.01129193 	113.2 	64.6 	+1.0 	-0.5 	+92.7 	+35.1 	+45.0
005 	08:12:33 	235.160 	+51.08673975 	+4.01140176 	112.9 	64.5 	+0.7 	+0.1 	+91.7 	+35.1 	+45.0
006 	08:12:46 	248.410 	+51.08673302 	+4.01151126 	112.8 	64.6 	+0.5 	-0.1 	+92.6 	+35.1 	+45.0

EO File

TTC00071 	+51.08674752 	+4.01096161 	64.6 	+0.3 	-1.1 	+93.1
TTC00072 	+51.08674537 	+4.01107521 	64.6 	+0.6 	+0.4 	+92.0
TTC00073 	+51.08674224 	+4.01117978 	64.5 	+0.5 	-1.2 	+91.9
TTC00074 	+51.08674074 	+4.01129193 	64.6 	+1.0 	-0.5 	+92.7
TTC00075 	+51.08673975 	+4.01140176 	64.5 	+0.7 	+0.1 	+91.7
TTC00076	+51.08673302 	+4.01151126 	64.6 	+0.5 	-0.1 	+92.6

After saving your flight data at the right folder, the processing can start. Push the import flight data button and click on start. Window will appear with generic import choices. Fill in the estimated average ground height in m. The source CRS of your GPS XYZ data. The order of the coordinates (lat long or long lat) (XY or YX) The interpretation of Z-value: above sea-level (tick on) or barometric height (tick off) The order of the orientations of roll, pitch, and yaw The interpretation of the Yaw direction (pointing north or east; clockwize or counterclockwize)

• Check for missing images, or wrong EO files and send back an error
• Transform all given orientation data into the format (e.g. CRS) for Orbit UAS Mapping.
• Covert the *.jpg or *.tif images to the *.omi format. OMI stands for Orbit Multiresolution Image. This resource type is developed by Orbit GT for encoding and fast viewing of rasters and images (any size).


If import has already been done, you will get the warning of import.

The postprocessing project will be created and shown in your mapcanvas. You will see that two extra layers will be add to your datasetlist.

• Post - Projection Centra: X, Y, Z position during image shot
• Post - Photo Footprint

You can change colors or transparancy of these layers via the legend editor of Orbit (right mouse click on the layer). These layers are created based on the values given by EO file.

To check the raw material (image and XYZ coordinates), please have a look at the video tutorial below. Via the 'show hyperlink document' you can open all raw images and check the quality.

To continue the postprocessing, go to posttab page.
