Automated Feature Extraction

This page describes the Orbit desktop extension “Automated Feature Extraction”.

Feature Extraction Pro
Main Toolbar > Extensions > Automated Feature Extraction

Concepts

All extensions exclusive for Orbit 3DM Feature Extraction PRO require a deep understanding of the parameters as well as the input data itself. If no satisfactory results are obtained please contact support for the training and assistance with finding optimal parameters.

Automated Feature Extraction Extension is an extension devoted to finding features of certain type fully automatically based on a point cloud and set of user-defined parameters.

Independently of the type of the features we are looking for the same workflow is used:

  1. Define a small representative test area and run chosen Detector.
  2. Measure and test features which are required to be extracted but were not detected with the initial set of the parameters.
  3. Update parameters accordingly to the software feedback on why the features were not detected initially.
  4. Repeat steps 1-3 till the results are satisfactory.
  5. Run Detector on the whole AOI.
  6. Create Theme from the detected features and Verify them with Asset Inventory Verify procedure (for more information on Asset Inventory please refer to Manage Asset Inventory Themes and Verify inventory items).

Detectors

Select one of the available detectors.

Pole Detection

Pole detection is based on the geometry of the point cloud: poles are expected to be round and standing straight. Based on this assumption the process of detecting poles can be split in 3 main steps:

  • Quickly exclude areas which can not contain poles.
  • Find poles candidates and check if they meet the criteria of being round and straight.
  • (Optional) Exclude trees, traffic signs and poles which are not on the ground.

Traffic Signs

Traffic signs detection is based on point cloud reflective as well as shape recognition. Traffic signs are expected to have high percentage of highly reflective points and shape should be: triangle, round or square.

Source

Select point cloud dataset drop-down menu
Choose one of the available in the Dataset List *.opc point cloud files to use in slope calculations.

Project
Choose where you want to store the Automated Feature Extraction results. A project represents an automatically created destination in the same folder where the source point cloud is stored.
For each run of Automated Feature Extraction extension a new project will be created. Writing new data in an existing project will overwrite existing data in that folder.
Options to create a new project, open a recent project, close or delete a project are available.

Area Limitation

The Area of Interest (AOI) can be defined by

  • Selecting polygons from opened vector dataset.
  • Drawing a polygon in 2D or 3D Map.

If AOI has not been defined the whole point cloud will be processed.

Parameters

When creating a new project the parameters are read from Preferences of Detectors and basic set of the parameters is displayed on the sidebar; advanced parameters can be accessed by small grey circle above basic parameters.

Changing parameters in the sidebar influence the currently opened project immediately, while Parameters in the Preferences are only taken into account at the moment of Project creation.

Test

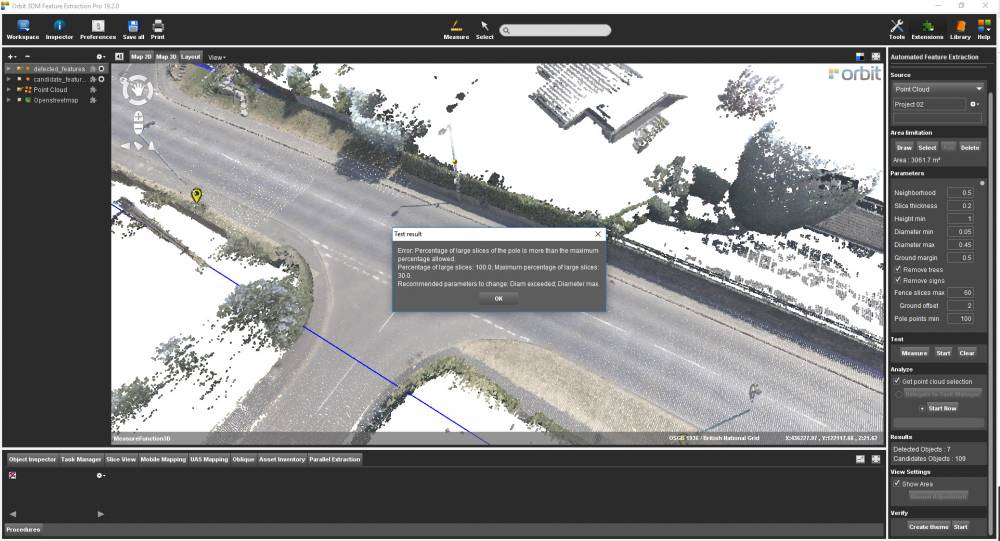

'Test' allows to check if certain object will be detected by the extension as the feature of interest.

Measure
'Measure' allows you to measure the object you would like to test for conformity with the entered parameters.

Start
'Start' runs the above mentioned test. If object conforms with the parameters then the message “Feature is detected” will be shown, otherwise Orbit will provide a tip on the calculated statistics and recommendation on which parameters need to be changed for this feature to be detected as feature of interest.

Clear
Clears the measurement if present.

Analyze

Get point cloud selection
If this check box is on the points from the point cloud belonging to the extracted features will be selected (*.ops file created)

Delegate to Task Manager
Allows to schedule job to be run later by delegating it to the Task Manager.

Start Now
Start calculating of the slopes immediately.

Results

Shows amount of detected and candidate objects.
Results are saved in temporary files in the corresponding folder (see above) and also added to the dataset list as detected_features and candidate features.

Verify

Create theme
Creates Asset Inventory Theme which can be used for result's verification for example.

Start
Opens Asset Inventory Verify procedure.
