Requirements for Orbit Server
This page describes the hardware requirements of a server for Orbit 3DM Publisher or Orbit 3DM Feature Extraction.
The Orbit Mapping solutions do not require special hardware.
Do make smart choices in relation to the volume of data to be hosted/processed and the expected performance.
Operating System
Windows or Linux, see Operating System and Software Requirements.
Computing Power
Depending on your expectations, type and volume of used resources (e.g. point cloud, imagery, base maps, … ), number of concurrent users and the data network configuration.
Here's a guideline for a single server unit :
- Operating System: 64bit
- RAM1): 16 to 32GB
- CPU: Quad-core or higher
3rd Party Software
Flash for 3DM Publisher and 3DM Feature Extraction
Flash 11.0 or higher is required to load the “EOS Console”, the server management tool.
The EOS Console can be started via HTTP.
Database for 3DM Feature Extraction
Client-Server Feature Extraction requires a single central database.
Any by Java supported database can be used, see Spatial Databases.
We advise an opensource and community databases like MySQL or PostgreSQL.
Graphics Card
No special requirements.
Internet Access
Online access to the Orbit License Service is required, see Orbit Online License Activation.
Web Client to Server connection for 3DM Publisher
For data hosting the Server upload and Client download speed needs to be taken into account.
Minimum internet (or LAN) data-transfer of 200 Mbps.
Web Client - Server communication requires a single port to operate. The default configuration is set to port 1111.
Port 80 or 443 are supported, as well use of a Proxy server.
Local Area Network
Desktop Client to Server connection for 3DM Feature Extraction
It is important to have a fast and solid network connection between the Orbit Desktop Clients, their Orbit Server and the data storage.
Minimum data-transfer of 1 Gbps.
Desktop Client-Server communication requires a single port to operate. The default configuration is set to port 1100.
Network speed
This is an informative table to indicate the impact of internet and LAN network speed.
Network speed | Copy time | ||||||
---|---|---|---|---|---|---|---|
Unit | Gbps2) | Mbps3) | Kbps4) | kB5) | 5MB | 100MB | |
1kb | 1 *10-6 | 1*10-3 | 1 | 0.125 | 680 min | 13 600 min | |
100kb | 0.0008 | 0.8 | 800 | 100 | 51.2 sec | 17 min | |
1mb | 0.001 | 1 | 1 000 | 125 | 41 seconds | 13 min | |
100mb | 0.1 | 100 | 100 000 | 12 500 | 0.41 sec | 8.2 sec | |
1gb | 1 | 1 000 | 1 000 0000 | 125 000 | 0.041 sec | 0.82 sec |
Network speed units are expressed in Bits per second, not in Bytes. In the rightmost column, the equivalent copy time is calculated for e.g. a panorama image file. Note, this is in ideal conditions if the entire network capacity is available.
Server Disks & Diskspace
No special requirements.
An Orbit Server installation is about 500MB, preferably installed on a dedicated partition of 10 to 50 GB.
Storage & File Access
An Orbit Server requires file access.
Special attention is required to manage and organize the huge volume of mapping resources, see Requirements for Orbit Desktop.
Installation Schemes
For 3DM Publisher, we advise a maximum of 50 active concurrent users to one server unit.

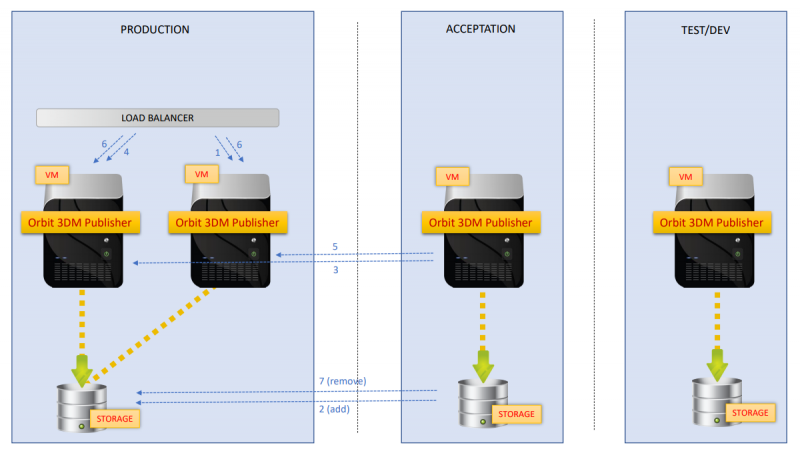

Single Storage Unit
Duplicated Storage Unit
